Thermal Studs / Tstud

Name: Thermal Studs / Tstud
Address: Lakeville, Minnesota, USA

Minnesota

Building Materials

Thermal Studs manufactures engineered wood framing products designed to reduce thermal bridging in residential and commercial buildings. Its Tstud™ systems provide an alternative to conventional wall studs for energy-efficient construction and high-performance building envelopes.

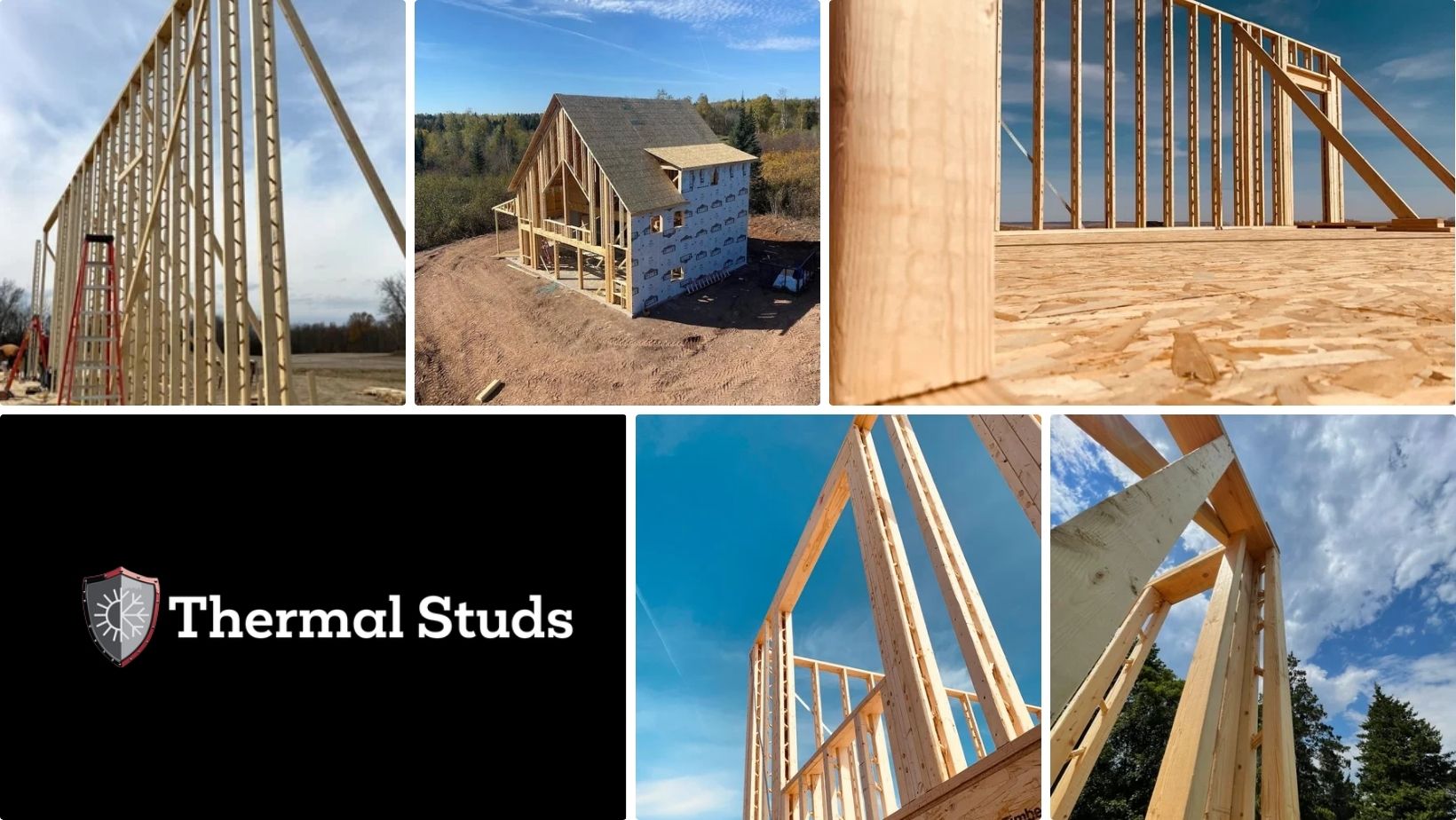

The product range includes insulated R19 Tstud™, Un-Insulated Tstud™, WarmStud™, and prefabricated wall panel systems. Tstud products combine lumber members with an internal truss structure; the R19 version incorporates foam insulation, while the uninsulated version accommodates separately installed cavity insulation.

These products are suited to new home construction, energy-efficiency upgrades, and projects targeting improved building-envelope performance. The manufacturer provides technical evaluation reports, construction manuals, specification sheets, and CAD resources for design and installation planning.

Specification Highlights:

R19 Tstud is available in a 5.5-inch nominal depth, with standard lengths from 92 5/8 inches to 12 feet and special-order lengths up to 16 feet. The integrated insulation core is rated R-19.

Un-Insulated Tstud is available in 5.5-inch and 7.25-inch depths, with lengths up to 12 feet and 16 feet, respectively, including special-order options. It accommodates insulation such as cellulose, fiberglass, mineral wool, or spray foam.

Thermal Studs publishes third-party technical evaluation reports and installation documentation. Structural capacities, stud spacing, and code compliance depend on the specific product, wall assembly, and project conditions.
